KONE TravelMaster™ 110 Escalator

Commercial escalator details

Description

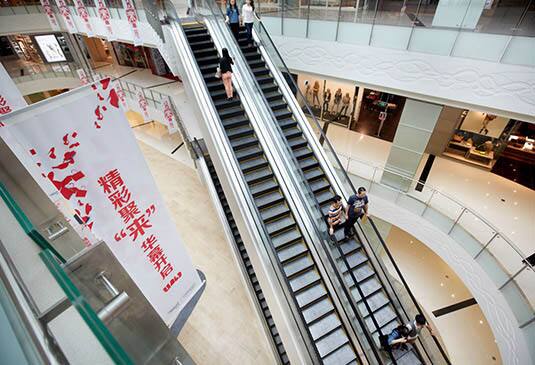

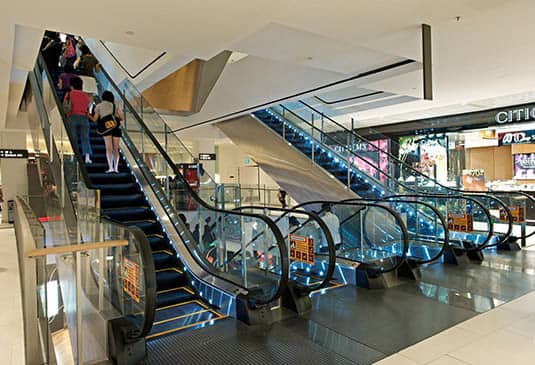

The KONE TravelMaster™ 110 is an eco-efficient commercial escalator that is optimized for both indoor retail environments and outdoor escalator use cases like an outdoor mall or shopping center.

Specifications

  • Operational environment: indoor, semi-outdoor, full outdoor
  • Speed: 0.5 m/s
  • Inclination: 30º, 35º
  • Step width: 600, 800, 1000 mm
  • Vertical rise: up to 13 m

Commercial escalator safety

  • Safety is the starting point for every KONE escalator. The TravelMaster™ 110 commercial escalator conforms to all local and international safety codes.
  • We provide standard commercial escalator safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

Escalator Designer for TravelMaster 110

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TravelMaster 110 escalator.

KONE TravelMaster™ 110

The KONE TravelMaster 110 is an eco-efficient escalator designed for commercial environments. It incorporates the latest in safety technologies and visual design innovations.

KONE TravelMaster™ 110 planning dimensions

Architectural planning datasheets for the KONE TravelMaster 110 escalator.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

Planning retail People Flow

Our easy-to-use planning guide takes you through the options for creating smooth, safe people flow in different types of retail environments, from shopping centers to big-box stores.

KONE Solutions for retail facilities

We can help you turn people flow into cash flow – whether you’re planning and designing a new facility or upgrading your existing equipment.

Commercial escalator options and highlights

Travelmaster 110, 120

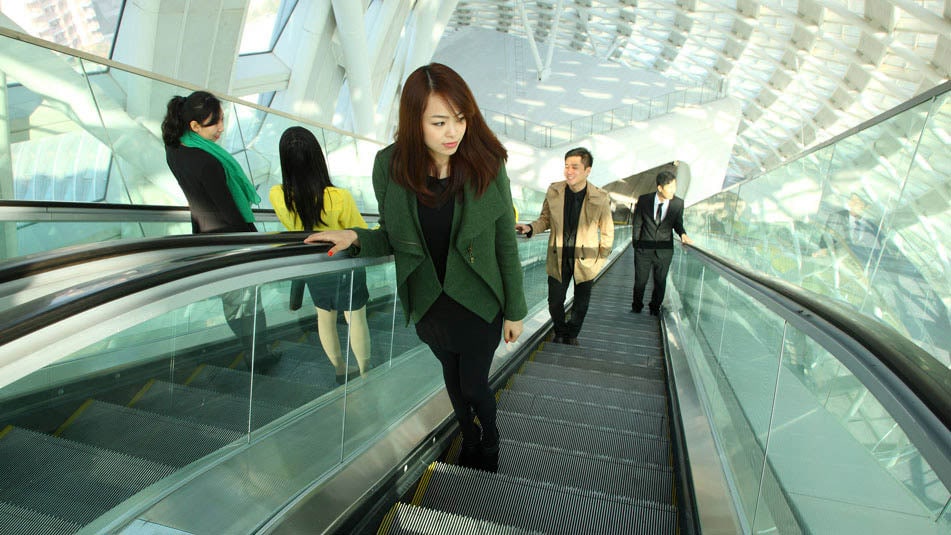

Commercial escalator energy-efficiency

  • Smart operational modes and inverter optimize commercial escalator energy consumption under different load conditions, including outdoor escalator use cases
  • Long lasting commercial escalator LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
Travelmaster 110, 120

Commercial escalator safety

In addition to the standard commercial escalator safety features, we offer optional safety features including

  • New traffic commercial escalator signalization solutions to provide extra guidance
  • Audible alarms provide clear guidance on escalator travel direction, including outdoor escalator use cases
  • Alarm for travel direction if passengers enter a commercial escalator in the wrong direction
  • Fall-prevention barrier and extended balustrades provide additional passenger protection
Travelmaster 110

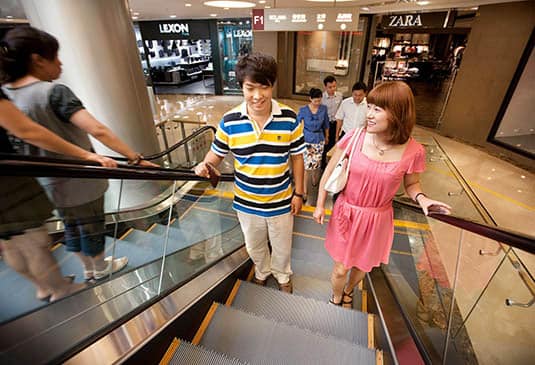

Commercial escalator design

High quality visual design for both indoor and outdoor escalator use cases:

  • Innovative and attractive commercial escalator lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Related topics

Escalator and autowalk solutions

Product name
Description (+type)
Segment
Maximum rise
Speed
Inclination
Duty cycle
Environment
TravelMaster 110
EscalatorCommercial, retail, hotel, office
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
Indoor, outdoor, semi-outdoor
TravelMaster 115
Inclined AutowalkCommercial, retail, hotel, office
7 m
0.5 m/s
10°, 12°
12-16 hours/day
Indoor, semi-outdoor
TransitMaster 120
EscalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20 hours/dayIndoor, semi-outdoor, outdoor
TransitMaster 140
EscalatorInfrastructure
18 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°20-24 hours/dayIndoor, outdoor
TransitMaster 165
Horizontal AutowalkInfrastructure
15-60 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
TransitMaster 185
Horizontal AutowalkInfrastructure
15-100 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
