Escalator details

Description

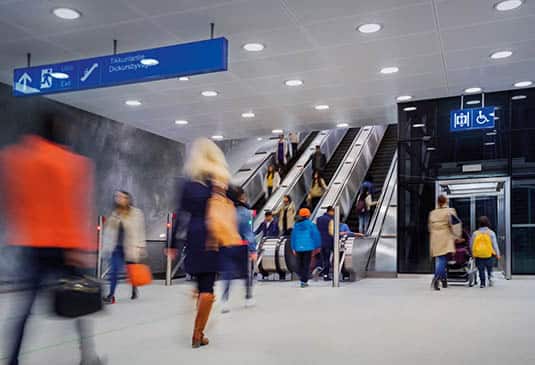

The KONE TransitMaster™ 140 escalator is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.

Specifications

  • Operational environment: indoor, semi-outdoor, outdoor
  • Speed: 0.5, 0.65, 0.75 m/s
  • Inclination: 27.3–30º
  • Step width: 1000 mm
  • Vertical rise: up to 35 m

Escalator safety

  • Safety is the starting point for every KONE escalator solution. The TransitMaster 140 escalator conforms to all local and international safety codes.
  • We provide standard escalator safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE TransitMaster™ 140 escalator

Escalator design and product information in a nutshell for KONE TransitMaster™ 140 escalator.

Specifications – KONE TransitMaster™ 140 escalator

Escalator details and safety and design options for the KONE TransitMaster™ 140 escalator.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE TransVario factsheet

TransVario drive - a premium escalator drive option for even better escalator performance, space-efficiency and sustainability.

Escalator options and highlights

Travelmaster 140

Escalator eco-efficiency

  • Smart operational modes and an inverter optimize escalator energy consumption under different load conditions
  • Long lasting escalator LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • An energy efficient inverter for moving stairs provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
  • The optional regenerative technology for electric stairs cuts power consumption by recycling energy and feeding it back into the system
  • The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk

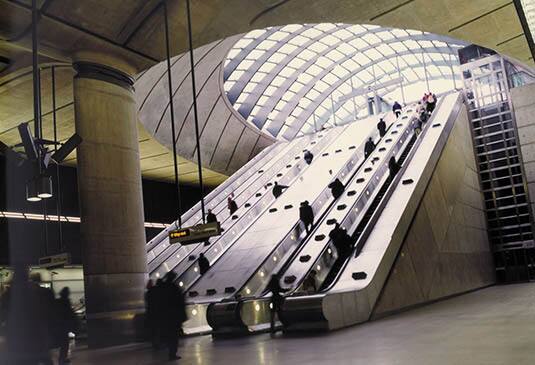

Travelmaster 140

Escalator safety

In addition to the standard escalator safety features, we offer optional safety features including

  • Audible alarms and traffic signalization provide clear guidance on escalator travel direction
  • Alarm for travel direction if passengers enter electric stairs in the wrong direction
  • New escalator traffic signalization solutions and colored step demarcations for extra visual guidance
  • Four-step horizontal section at the top and bottom of the escalator makes exit and entry smooth and safe
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 120

Escalator design

High quality visual design for electric stairs offers the best possible user experience

  • Innovative and attractive escalator lighting solutions that also improve passenger guidance and safety
  • A wide range of escalator design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio"

Contact us for a detailed cost estimate

Related topics

Escalator and autowalk solutions

Product name
Description (+type)
Segment
Maximum rise
Speed
Inclination
Duty cycle
Environment
TravelMaster 110
EscalatorCommercial, retail, hotel, office
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
Indoor, outdoor, semi-outdoor
TravelMaster 115
Inclined AutowalkCommercial, retail, hotel, office
7 m
0.5 m/s
10°, 12°
12-16 hours/day
Indoor, semi-outdoor
TransitMaster 120
EscalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20 hours/dayIndoor, semi-outdoor, outdoor
TransitMaster 140
EscalatorInfrastructure
18 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°20-24 hours/dayIndoor, outdoor
TransitMaster 165
Horizontal AutowalkInfrastructure
15-60 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
TransitMaster 185
Horizontal AutowalkInfrastructure
15-100 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
